Product Description:

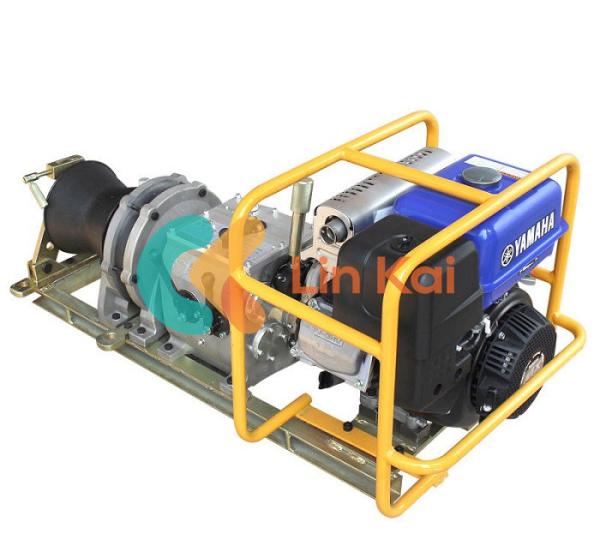

CAPSTAN WINCH: Designed with Precision
The CAPSTAN WINCH is a product that has been manufactured with
precision after extensive research and development. The
motor-capstan winch, known as the JJ-5B type, is equipped with a
range of linear velocity, from 4 to 24 meters per minute. Moreover,
the product has multi-shift gears which make it much more efficient
and versatile.
The power system and gearbox in this product uses the straight
shaft link, which gives it a more compact configuration without
compromising on its safety and reliability. The product is widely
used in various fields such as electricity transmission, telecom,
railway, and port infrastructure construction. It is an essential
tool that is used for erecting poles and wires, fastening wires,
and hoisting.
Fast powered shaft driven winch data sheet
| Item number | Model | Rotation direction | Gear | Tractive force (T) | Traction speed (M/MIN) | Power (KW) | Outline size (MM) | Weight (KG) |
| 09131 | JJQ-30 6HP Gasoline engine | corotation | SlowⅠ | 3.0 | 5 | 4.04 | 900x400x430 | 94 |
| SlowⅡ | 2.0 | 7 |
| FastⅠ | 0.9 | 16 |
| FastⅡ | 0.6 | 24 |
| reversal | Slow | No lifting | 4 |
| Fast | 13 |
| 09131A | JJC-3 5HP Diesel engine | corotation | SlowⅠ | 3.0 | 5 | 2.90 | 1000x450x500 | 115 |
| SlowⅡ | 2.0 | 7 |
| FastⅠ | 0.9 | 16 |
| FastⅡ | 0.6 | 24 |
| reversal | Slow | No lifting | 4 |
| Fast | 13 |
| 09135 | JJQ-5B 9HP Gasoline engine | corotation | FastⅠ | 0.9 | 24 | 6.6 | 1100x525x600 | 138 |
| FastⅡ | 1.5 | 13 |
| SlowⅠ | 2.5 | 8 |
| SlowⅡ | 5.0 | 4 |
| reversal | Slow | No lifting | 4 |
| Fast | 18 |
| 09135A | JJC-5B 186F Diesel engine | corotation | FastⅠ | 0.9 | 24 | 5.7 | 1000x498x600 | 148 |
| FastⅡ | 1.5 | 13 |
| lowⅠ | 2.5 | 8 |
| SlowⅡ | 5.0 | 4 |
| reversal | Slow | No lifting | 4 |
| Slow | 18 |
Features:
The JJ-5B winch is a traction tool that does not require an
electric source. This product is perfect for areas without
electricity such as river-concentrated and mountainous areas. The
winch is equipped with a gasoline engine, clutch, gearbox, and
planetary reducer (PIC1) which gives it several advantages such as
being lightweight, compact, and having a high pulling force.
The JJ-5B winch is easy to maintain, overhaul, and operate. Its
design ensures low levels of complexity while still being able to
function optimally. This makes it popular with users who require a
durable winch.
The compact size of the JJ-5B winch makes it an ideal tool for
transportation. Its lightweight feature increases its mobility. Due
to its suitability for use in areas without an electric source, the
winch is perfect for mining operations, forestry, and agriculture.
Technical Parameters:
Engine
The JJ-5B type capstan winch is equipped with a Honda 390 gasoline
engine, which has a rated power of 6.6kw and can be started with a
hand rope. Meanwhile, the JJC-5B type capstan winch comes with an
186F type direct injection diesel engine, with a rated power of
5.7kw and can be started with a hand crank. Both the gasoline and
diesel engines are known for their high reputation, reliability,
easy maintenance and operation in China.
Clutch
The elastic couplet shaft device passes the movement and power to
the synchronous moving fixed seat through the clutch. When the
clutch handle rotates, it promotes the activities wheel and fixed
taper surface to contact, after which the clutch outputs movement
and power through friction. The clutch is characterized by good
fixed centricity, strong suction vibration ability, great
transmitting torque, smooth and flexible operation, and free
clutch. Additionally, the clutch handle is equipped with a lateral
or radial positioning device to facilitate long hours of work.
Gearbox
The gearbox directly inputs the engine’s movement and power through
the clutch. It adopts cylindrical gear transmission and spline
connection straight tooth to shift as per the speed required by the
whole machine. The gearbox is compactly structured, small in
volume, and easy and flexible to operate, with sensitive shift.
Brake
The braking agency of the machine uses a combination of a main
brake and a hand brake. The main brake adopts the beyond type
one-way brake, which is installed on the output shaft in the
gearbox. The hand brake is controlled by the clutch handle, and is
capable of stopping the gearbox’s movement by friction when the
clutch withdraws, achieving the braking effect.
Planetary reducer
This product adopts the involute one tooth differenced planetary
reducer (PIC2), composed of the partiality axis, inside gear ring,
two upward symmetrically arranged planetary gears and output
institution. The reducer is characterized by great transmission
ratio, compact structure, small volume, light weight, and long
service life, among other features.
Winch roller
The winch roller uses high-quality steel and is connected with the
output shaft of the planetary reducer. It adopts the rolling
bearing and sliding bearing combination unloading force device.
Additionally, the winch roller uses an activities supporting
bracket for easy loading and unloading the steel wire rope.
Applications:
The NBLK cable winch puller is an essential tool for various
industries such as construction, mining, and forestry. It is
commonly used in power line construction, tower erection, and cable
laying applications. With its detachable drum feature and four-gear
system, the cable winch puller can handle heavy loads with ease.
The product is also equipped with a gasoline engine, making it a
gas engine powered capstan winch or gasoline engine cable pulling
winch.
The NBLK cable winch puller has a minimum order quantity of 1 and
is priced according to the latest market rates. Its packaging
details include a wooden case that ensures safe transportation. The
delivery time for this product is between 3-7 days, and the payment
terms are T/T. With a supply ability of 500 sets per month, the
NBLK cable winch puller is readily available for various industrial
needs.
In the construction industry, the NBLK cable winch puller is used
to move heavy construction materials from one location to another.
It is ideal for lifting and hoisting heavy beams, steel frames, and
concrete slabs. The product is also widely used in the mining
industry to pull and lift heavy equipment. In the forestry
industry, the cable winch puller is used to move large logs and
clear wooded areas.
In summary, the NBLK cable winch puller is a reliable and versatile
tool that can handle various heavy-duty applications. Its gas
engine powered capstan winch or gas powered winch feature makes it
an ideal choice for applications where electricity is not
available. With its high traction force and detachable drum
feature, the NBLK cable winch puller can handle a wide range of
industrial needs.
