Product Description:

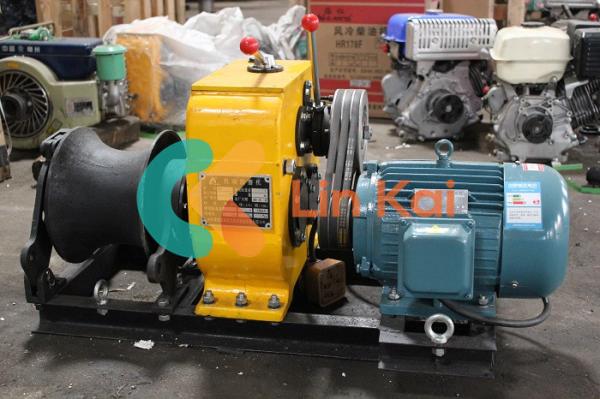

The JJD-5 electric motor winch is a versatile piece of equipment
that can be used for a variety of purposes. It is equipped with a
powerful 4KW motor, which allows it to lift and haul heavy loads
with ease. Additionally, the winch is designed with a clutch,
gearbox, brake and winch roller component, which makes the entire
operation smooth and safe.
One of the main advantages of the JJD-5 electric motor winch is its
ease of maintenance. As a result of its simple construction and
high-quality components, it is easy to disassemble and reassemble
the machine for maintenance or repair. This means that you can keep
the winch in top condition and avoid costly downtime.
Furthermore, the JJD-5 electric motor winch is designed with ease
of operation in mind. With intuitive controls and clear
instructions, it is an easy piece of equipment to use, even for
those who are not experienced with winches. This means that you can
quickly and efficiently finish your tasks without any hassle.
Key Features:
- 4KW motor
- Clutch, gearbox, brake, and winch roller component
- Easy to maintain and repair
- Intuitive controls for easy operation
| Item number | Model | Rotation
direction | Gear | rotational
speed
() | Traction
speed
(m/min) | Tractive
force
(T) | Power
(KW)
| Outline
size
(mm) | Weight
(kg) |
| 09121 | JJQ-3Q
6HP
Gasoline
engine | corotation | Ⅰ
Slow | 9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
Ⅱ
Fast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 |
| reversal | Reverse | 7.5 | 3.3 | No lifting |
| 09121A | JJC-30
170F
Diesel
engine | corotation | Ⅰ
Slow | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
Ⅱ
Fast | 21.0 | 9.0 | 1.8 |
| reversal | Reverse | 10.0 | 4.5 | No lifting |
| 09121B | JJD-30
3KW
Electromotor | corotation | Ⅰ
Slow | 8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
Ⅱ
Fast | 10.5 | 6.5 | 1.8 |
| reversal | Reverse | 7.0 | 3.0 | No lifting |
| 09123 | JJQ-50
9HP
Gasoline
engine | corotation | Ⅰ
Slow | 6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
Ⅱ
Fast | 16.0 | 9.0 | 2.2 |
| reversal | Reverse | 7.0 | 4.0 | No lifting |
| 09123A | JJC-50
6.6HP
Diesel
engine | corotation | Ⅰ
Slow | 8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
Ⅱ
Fast | 19.0 | 11.0 | 2.3 |
| reversal | Reverse | 10.0 | 5.5 | No lifting |
| 09123B | JJD-50
4KW
Electromotor | corotation | Ⅰ
Slow | 5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
Ⅱ
Fast | 14.0 | 8.0 | 3.0 |
| reversal | Reverse | 7.0 | 4.0 | No lifting |
Features:
Electric Motor Winch
The JJD-5 electric motor winch is equipped with a reliable 4KW
motor which ensures efficient performance. It is designed to be
convenient in terms of operation and maintenance, making it an
ideal choice for various applications.
Transmission and Gear Shift
The winch is powered by a triangle belt transmission system which
is connected to the gear case. The clutch handle is used to control
the winch work, allowing for easy engagement and disengagement. The
clutch torque is then transmitted to the multistage gear which
output to the winch roller, ensuring smooth operation.
Lubrication
The gearbox of the winch is lubricated by splash lubrication which
ensures optimum performance. Before using the winch for the first
time, 3 liters of 10# engine oil should be injected into the gear
box label position. Regular maintenance is recommended, which
includes changing the oil every six months or whenever necessary,
to ensure the longevity of the winch.
Technical Parameters:
Product Features:
The following are the main product features of our construction
machine:
1. Compact Structure and Strong Maneuverability
The construction machine has a compact structure which makes it
highly maneuverable. This means that you will be able to easily
navigate through narrow and complex terrain conditions. The machine
can easily make sharp turns and move in different directions,
giving you greater control over your operations.
2. Small Volume and Light Weight
Due to its small volume and light weight, the construction machine
is highly suitable for use in water, mountains, and other complex
terrain conditions. It is easy to transport and requires minimal
space for storage. You won't have to worry about carrying heavy
machinery or having to deal with space constraints on the job site.
3. Simple Operation and High Work Efficiency
The construction machine is easy to operate, and it has a high work
efficiency. By using this machine, you can minimize the need for
field staff, reduce labor intensity, and improve working
efficiency. This will result in increased productivity and shorter
completion times for your projects.
4. Safe and Reliable
The construction machine is safe and reliable to use on job sites.
It is equipped with native unique interlocking brake brakes, brake,
precision positioning features that ensure that you can lift heavy
objects and hover them at any location with precision. This will
help prevent accidents and damage to your equipment and personnel.
Applications:
The Electric Capstan Winch is an essential tool in various
industries like electric power transmission, power supply, post and
telecommunications engineering, mining, railway, etc. It offers
significant advantages like reasonable structure, simple operation,
safety, and reliability.
The Electric Capstan Winch finds its application in setting up
poles, towers, take-up, wiring, tight line, cable traction, and
handling. Due to its numerous benefits, it has become widely used
in various industries that deal with heavy-duty lifting and pulling
work.
