Product Description:

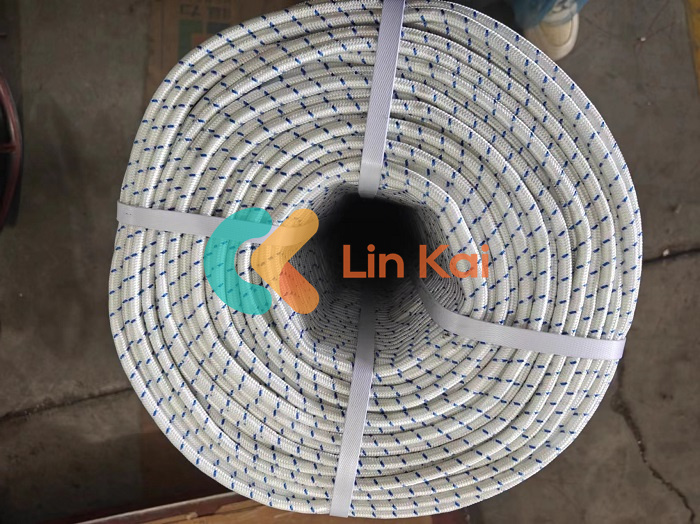

Uhmwpe Rope is a type of rope that is created by braiding
high-strength UHMWPE (Ultra-High Molecular Weight Polyethylene)
fiber together. This rope is then coated with a protective
polyester layer to help prevent wear and tear. One of the primary
uses for this type of rope is to string overhead transmission lines
or for OPGW (Optical Ground Wire) Stringing.
Another use forUhmwpe Rope is for live line or hot line pulling.
Because of its strength and durability, it is an ideal choice for
situations where traditional ropes would not suffice and where
electrical safety precautions are necessary.
High Strength Dupont Rope, on the other hand, is made of special
polyester fiber that is braided from 12 strands and also covered
with a protective layer. It is typically used as a pilot rope or
pulling rope for overhead transmission line stringing operations.
Like Uhmwpe Rope, High Strength Uhmwpe Rope is a reliable and
durable option that can withstand the demands of strenuous work
conditions. The protective layer also helps to extend the life of
the rope and makes it a wise investment for any operation that
requires robust and reliable equipment.
Uhmwpe Rope and High Strength Dupont Rope
DOUBLE LAYER BRAIDED UHMWPE ROPE:
- Braided from high-strength UHMWPE fiber
- Covered with a protective polyester layer
- Commonly used for overhead transmission line conductor or OPGW
stringing
- Also used for live line or hot line pulling
High Strength Dupont Rope:
- Created from special polyester fiber
- Braided from 12 strands
- Covered with a protective layer
- Used as a pilot rope or pulling rope for overhead transmission line
stringing operations
DOUBLE LAYER BRAIDED UHMWPE ROPE
| Item No. | Nominal diameter (mm) | Breaking Load (KN) | Diameter after covering Polyester (mm) | Net Weight (kg/1000m) | Weight After Covering (kg/1000m) |
| 18170A | 2 | 4.3 | 3 | 2.70 | 4.8 |
| 18170B | 3 | 8.5 | 4.5 | 4.65 | 9.6 |
| 18170D | 4 | 16.6 | 5.5 | 9.31 | 13.5 |
| 18170F | 5 | 24.4 | 7 | 14 | 20 |
| 18170G | 6 | 31.9 | 8 | 20 | 28.2 |
| 18170H | 7 | 43.6 | 9 | 27 | 36 |
| 18170J | 8 | 58.8 | 10 | 35 | 48.4 |
| 18170K | 9 | 70.3 | 11 | 42 | 58.5 |
| 18170L | 10 | 92.5 | 12 | 56 | 77 |
| 18170M | 11 | 115 | 13 | 70 | 97 |
| 18170N | 12 | 137 | 14 | 84 | 113.4 |
| 18170P | 13 | 159 | 15 | 98 | 132 |
| 18170Q | 14 | 180 | 16 | 106 | 150 |
| 18170R | 16 | 211 | 18 | 132 | 177 |
| 18170S | 18 | 296 | 21 | 186 | 247.3 |
Applications:
The fiber rope can be utilized in various operations such as pilot
rope or pulling rope in overhead transmission line stringing, hot
line working, helicopter stringing or drone stringing.
The fiber rope is specially braided from double layer high strength
Dupont polyester fiber making it anti-twisting and light weight.
In overhead transmission line stringing, the fiber rope plays a
vital role as a pilot or pulling rope. Similarly, it can be used
for hot line working with ease.
The rope is also packed in a steel reel which can be conveniently
installed on reel winder of hydraulic puller directly, and used
with efficiency.
