Product Description:
Tower Erection Tools Gin Pole customized section and length it is
per the tower height, tower weight, and tower type to accordingly
manufacture by Ningbo lingkai.
Firstly this Tower Erection Tools Gin Pole has the aluminum alloy
inner suspended gin pole, aluminum alloy inner suspended lattice
gin pole, aluminum alloy lattice gin pole and A-shape tubular gin
pole, and etc.
Secondly, the aluminum alloy we applied it is all the top 2A12, not
the LY 12 material, it is to enhance the safety factor to more than
3.0 and to the axial load and vertical load more and more strength.
Aluminum alloy tower-mounted small gin poles
| Item No. | Overall Length (m) | Tubing Diameter (mm) | Allowed Axial Load (KN) | Weight (kg/m) |
| 03171 | 5 | 100 | 14 | 5.5 |
| 03172 | 6 | 11 |
| 03181 | 4.5 | 120 | 35 | 7.5 |
| 03182 | 5 | 26 |
| 03183 | 6 | 18 |
| 03184 | 7 | 14.5 |
| 03191 | 6 | 150 | 31 | 8 |
| 03192 | 7 | 22 |
| 03193 | 8 | 16 |
Note: The tubular small gin poles are fastened on the leg of tower.
The saddle for tower-mounted
small gin poles is not included.

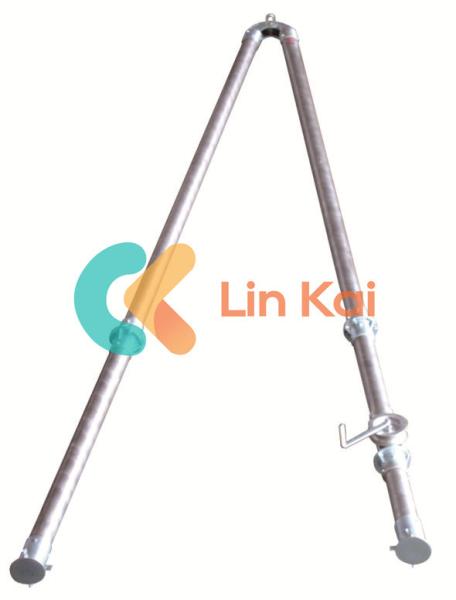

A type Aluminum Alloy Gin Poles (Tubular construction)
| Item No. | Overall Length (m) | Tubing Diameter (mm) | Max. Opening (m) | Allowed Vertical Load (KN) | Weight (kg/m) |
| 03301 | 6 | 100 | 2.1 | 18 | 5.5 |
| 03302 | 7 | 2.4 | 13 |
| 03303 | 8 | 2.8 | 10 |
| 03311 | 6 | 120 | 2.1 | 30 | 7.5 |
| 03312 | 7 | 2.4 | 26 |
| 03313 | 8 | 2.8 | 21 |
| 03314 | 9 | 3.1 | 17 |
| 03321 | 8 | 150 | 2.8 | 31 | 8 |
| 03322 | 9 | 3.1 | 28 |
| 03323 | 10 | 3.5 | 24 |
| 03324 | 11 | 3.8 | 20 |
| 03325 | 12 | 4.2 | 16 |
| 03226 | 13 | 4.5 | 13 |
Application: Used to erect single pole or lifting goods in power
transmission line construction.
Features:
The Tower Erection Tools Gin Pole is a crucial piece of equipment specially created for the
efficient and secure assembly of towers in various construction and
telecommunications projects. Constructed from durable materials,
this gin pole ensures outstanding strength and stability, making it
capable of enduring the demands of heavy lifting and positioning
tasks.
Its innovative design includes adjustable height settings, which
allow for versatility in different tower configurations. Moreover,
the integrated pulley system enhances lifting capabilities,
facilitating the maneuvering of heavy components into place with
ease. Safety is a top priority with this gin pole, featuring
locking mechanisms and reinforced attachment points to provide
peace of mind for operators during use.
Whether you are working on a telecommunications tower, wind
turbine, or any other tall structure, the Tower Erection Tools Gin Pole serves as your dependable ally in achieving precision and safety
in tower erection.
Applications:
Tower Erection Tools Gin Pole customized: These tools are used for erecting towers in overhead line
transmission line construction. The Gin Poles can be assembled
piece by piece. We provide clients with accessories such as double
pulleys, nuts, screws, 2 sets of waist loops, bottom base, and head
free of charge. Additionally, we offer technical support, videos,
and files as needed to assist with the tower erection process.
Aluminum alloy derricks: These derricks are used to assemble and erect towers and poles in
transmission and distribution construction projects. They are
highly beneficial to workers, offering support and assistance
during construction. Our derricks are made from high-strength angle
aluminum alloy, and all steel parts are galvanized for durability.
Customization:
Product Customization Services for Tower Erection Tools:
- Brand Name: NBLK
- Model Number: LBNX400, LBD400, LBNXG150
- Place of Origin: NINGBO
- Certification: ISO
- Minimum Order Quantity: 1
- Price: Get the latest
- Packaging Details: Wooden case
- Delivery Time: 3-7 days
- Payment Terms: T/T
- Supply Ability: 200 sets/month
- Bottom Type: 2 Types Can Be Selected
- Cross section: Max 700X700
- Capacity: Max 600kn
- Packing: Container
- Main type: Inner Suspension Aluminum Alloy
Customization options include:
- Lattice type aluminum alloy tower
- Aluminum alloy A-shape gin pole
- Inner-suspended lattice gin pole
