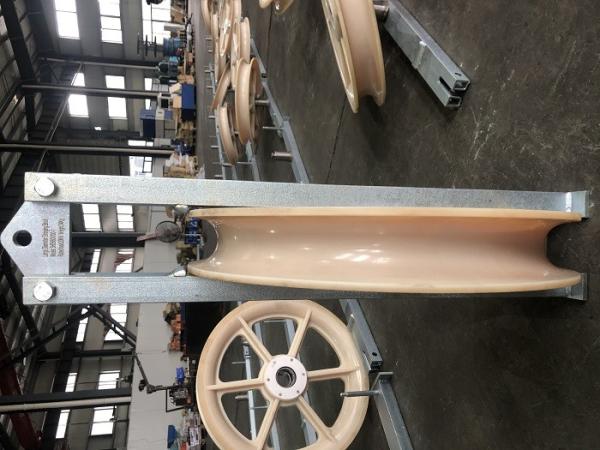

750MM Overhead Line Conductor Stringing Blocks with Nylon Wheels

750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon.

50MM Nylon Sheaves Conductor Stringing Blocks

Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm

Ningbo Lingkai Electric Power Equipment Co., Ltd. is a professional manufacturer of Electric Power Machinery.We located in Ningbo City.All of our products including Stringing Blocks, Hoisting Tackles, Cable Rollers, Conductor Gripper, Gasoline Powered Winch,Tensioner,Gin Poles and Inspection Trolleys, Hydraulic Bus-bar Machine and other rated electric machine.We are willing to make friends with customers and establish a long-term relationship to create a brilliant future.We are ready for you,welcome to send us inquiries!

Production Site

The company is equipped with high precision vertical machining center, horizontal machining center, CNC honing machine, CNC lathe, CNC milling machine and other advanced equipment, also equipped with a large horizontal lathe, lathe, punching machine, rocker large crane and polishing machine, electric welding machine and other general equipment, and the design and manufacture of nylon wheel casting machine and other special processing equipment and technology install.

Patents and Quality Certifaictions

The professional R & D capability is the premise of product innovation and technological progress. Many products of the group have their own intellectual property rights. They have obtained 6 invention patents, nearly 20 patents on utility models and designs. And many times included in the Ningbo municipal new product trial production plan and the national key new product plan.

On the basis of the implementation of the ISO9000 quality system management, the company carries out the special TS16949 management system of the automobile industry at a higher level.
