Diesel Engine 3600RPM 9HP Cable Winch Puller

Ask Lasest Price
Brand Name :	LINGKAI
Model Number :	JJCS JJCQ 5
Certification :	ISO
Price :	get the latest
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200sets/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

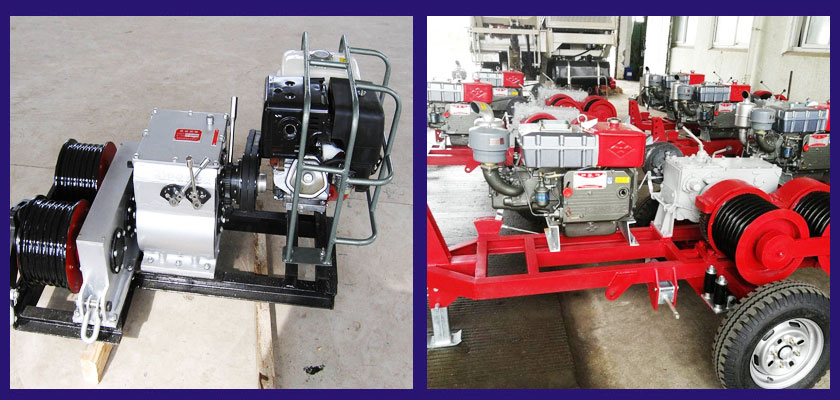

Diesel Engine 3600RPM 9HP Cable Winch Puller

DIESEL ENGINE GASOLINE POWERED WINCH ELECTRIC CABLE DOUBLE DRUM HOIST WINCH

Application: Wire Rope Electric Hoist Winch for Lifting is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools , tower erection , pole setting,stringing wire in electrical power line construction, the electric winch is driven by a belt,effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Engine Powered Winch Type 1. Diesel engine. 2. Gasoline engine. 3. Elecric Motor.

TECHNICAL DATA

Item number		09162A	09162B	09162
Model		JJCS-50	JJQS-50	JJCS-50
Engine	Model	Diesel Engine	Gasoline Engine	Diesel Engine
	Power(KW)	9	9	9
	Speed(rpm)	2000	3600	2000
Pull(KN) speed force/ (M/MIN)	Slow	50/5	50/5	50/3.1,40/9.6
	Moderate	25/9 14/14	25/9 14/14	45/7.1,17/22.3
	Fast	8/22	8/22	33/11.3,10/35.6
	Reverse	-/5 -/9	-/5 -/9	-/7.35
Drum bottom of groove diamete(MM)		Φ230	Φ230	Φ300
outline size (MM)		1000x670x600	1000x670x600	2230x1210x1135
Weight(KG)		300	300	700
