    Line Stringing 660mm Cable Pulling Pulley

    Ask Lasest Price
    Brand Name : Linkai
    Model Number : 660mm large blocks
    Certification : ISO
    Price : get the laest
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 800sets/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

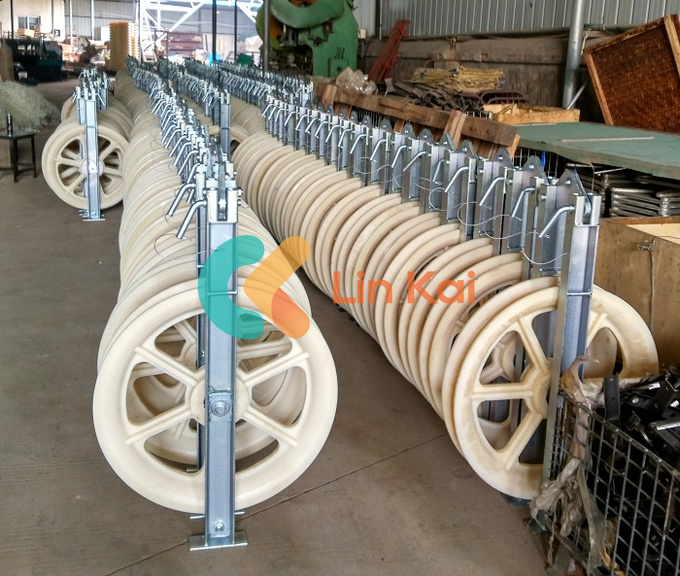

    Line Stringing 660mm Cable Pulling Pulley

    660mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block


    660mm Stringing Block

    Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized


    Technical Data

    Item numberModelNumber of sheavesRated load (kN)Weight (kg)Features
    10121SHD66012030Rubber lined aluminium sheave
    10122SHS660340100

    Middle : Cast steel sheave

    Conductor : Rubber lined aluminium sheave

    10123SHW660560150
    10124/10124ASHDN66012026MC nylon sheave
    10125SHSLN66034086

    Middle : MC nylon sheave

    Conductor : Rubber lined aluminium sheave

    10126SHWLN660560120
    10127/10127ASHSQN66034070MC nylon sheave
    10128/10128ASHWQN660560110
    10130SHQ660A775190

    Middle :cast steel sheave

    Conductor : MC nylon sheave
