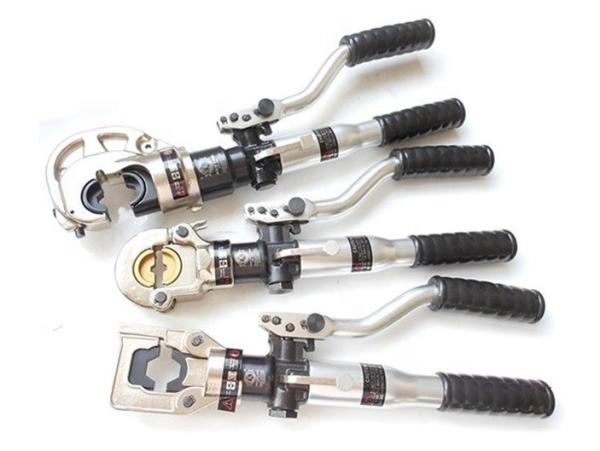

    HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals

    Ask Lasest Price
    Brand Name : Linkai
    Model Number : HT400
    Certification : ISO
    Price : get the latest
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-3work days
    • Product Details
    • Company Profile

    HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals

    HT-400 Integral Hydraulic Crimping Pliers Cable Lug Crimping Tools for 16-400 mm2 Crimping


    Hydraulic Crimping Tools Type Copper Tube Crimper Tool

    Item number

    1621016210A

    Model

    HT-300HT-400

    Crimping

    force

    60KN120KN

    Crimping

    range

    16-300mm²16-400mm²
    Crimping

    type

    hexagon crimping

    hexagon crimping

    Dies

    50

    16,25,35,50,70,95,120,

    150,185,240,300mm²

    50,70,95,120,150,

    185,240,300,400mm²

    Stroke

    17mm32mm

    Length

    approx.460mmapprox.552mm

    (KG)

    Weight

    approx.N.W3.7KG

    G.W7.1KG

    approx.N.W6.8KG

    G.W10.2KG

    Package

    aluminum alloy boxaluminum alloy box

    Hydraulic hand crimper / cable lug crimping tools/ wire crimper

    Characteristics

    1. Compression mould can be replaced, quick and safe operation;

    2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2

    3. Press tools is suitable for DIN.AWG.JIS.

    4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

    5. It can be operated by one person,it saves time and labor.

    6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.
