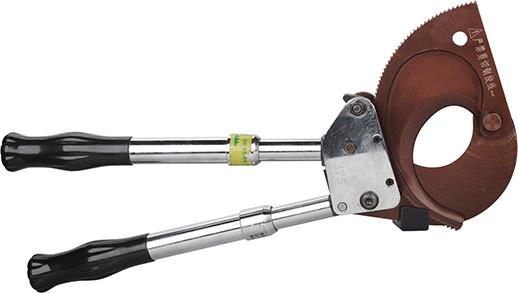

    ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools

    Ask Lasest Price
    Brand Name : Lingkai
    Model Number : J30, J13, J25,J50,J14....
    Certification : ISO
    Price : get the latest
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000 PCS/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools

    J Series ACSR Conductor Cutter Steel Wire Cutter Overhead Transmission Tools

    Cable cutters are used for underground cable installation and pulling operation. The cutters are mechanical ratchet type or hydraulic type.

    TECHNICAL DATA

    Item numberModelCutting Range
    21442BCC325Cutting Off Copper Or Aluminum Cable below240 mm2
    21442AJ40BCutting Off Copper Or Aluminum Cable below240 mm2
    21442CJ40ACutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
    21442DJ40CCutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
    21445CJ40DCutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
    21445J40Cutting Copper Or Aluminum armored cable below300 mm2. Maximum opening is 40 mm.
    21445AJ52Cutting Copper Or Aluminum armored cable below 500mm2. Maximum opening is 52 mm.
    21445BJ75

    Cutting Copper and Aluminum armored

    cables diameter below Φ 75mm

    21441J95

    Cutting Copper and Aluminum armored

    cables diameter below Φ 95m

    21441AJ100

    Cutting Copper and Aluminum armored

    cables diameter below Φ 100m

    21440J130

    Cutting Copper and Aluminum armored

    cables diameter below Φ 130mm

    21440AJ160

    Cutting Copper and Aluminum armored

    cables diameter below Φ 160mm


    PRODUCT DESCRIPTION

    Hand Easy Operation Armoured Ratchet Cutting Tools Manual Wire Cutter Electric Cable Cutter

    1. Cutting the copper aluminum armoured cable

    2. It could be operated by one hand only due to light weight;

    3. The cable cutter has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.


    Feature

    1. Cutting the steel wire rope;

    2. It could be operated by one hand only due to light weight;

    3. The utility model has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.

    SPECIFICATION

    Item numberModelCutting Range
    16247J30

    Cutting ACSR with section below 630mm .

    Cutting steel strand with section below 100 mm.

    16246J13

    Cutting ACSR with section below 720mm .

    Cutting steel strand with section below 150 mm.

    16245J25

    Cutting ACSR with section below 800mm .

    Cutting steel strand with section below 150 mm.

    16248J50

    Cutting ACSR with section below 1440mm .

    Cutting steel strand with section below 180 mm.

    16237J14Cutting steel rope section diameter below Φ20 mm
    16238J25A

    Cutting steel rope section diameter below Φ30 mm


    16239J33Cutting steel rope section diameter below Φ33 mm
