    18 Strands Anti Twisting Braided Steel Rope For High Voltage Big Conductors Stringing

    Ask Lasest Price
    Brand Name : Lingkai
    Model Number : ATW26mm, 28mm, 30mm, 31mm,32mm
    Certification : ISO
    Price : get the latest
    Payment Terms : T/T, Western Union
    Supply Ability : 100000M/month
    Delivery Time : 3-15 days
    • Product Details
    • Company Profile

    18 Strands Anti Twisting Braided Steel Rope For High Voltage Big Conductors Stringing

    18 Strands Anti Twisting Braided Steel Wire Rope is normally used for stringing overhead big conductor on 800 KV or 1000 KV transmission lines. It is braided from high strength steel wire 1X29T to get super high breaking load.


    It is specially braided from galvanized high strength steel wire strands, and usually used for overhead power line stringing and pulling operation. The high strength rope has lot of advantages: high flexibility, complete stability to rotation, homogeneous distribution of pressure between the elementary wires, increased efficiency during stringing operations. So the rope is always used as pilot wire rope or pulling rope for power line construction


    18 Strands Anti twisting braided steel wire rope

    Item No.Nominal diameterBreaking Load (KN)Single strand diameter (mm)Normal T/S (N/mm²)Net Weight (kg/1000m)
    18214B26405Φ4.519602020
    18215B28540Φ5.219602630
    1821630582Φ5.419602930
    1821731680Φ5.819603360
    1821832727Φ6.019603600

    26mm rope is braided from 18 strands of 1X29T galvanized wire, 600 meter/drum

    Packed in 1500mm diameter steel drum.


    Cat.NumberRope Dia.Breaking LoadStrand Dia.StructureUnit WeightRemark
    181017mm35 kN2.0mm8x19W0.160 kg/m8 strands
    181029mm54 kN2.5mm8x19W0.26 kg/m8 strands
    1810311mm77 kN3.0mm8x19W0.373 kg/m8 strands
    1810413mm105 kN3.5mm8x19W0.510 kg/m8 strands
    1810515mm137 kN4.0mm8x19W0.667 kg/m8 strands
    18201A9mm50 kN2.0mm12x19W0.250 kg/m12 strands
    18202A10mm70 kN2.3mm12x19W0.356 kg/m12 strands
    18203A11 mm85 kN2.5mm12x19W0.405 kg/m12 strands
    18204A12 mm100 kN2.7mm12x19W0.510 kg/m12 strands
    18205A13 mm115 kN3.0mm12x19W0.620 kg/m12 strands
    18206A14 mm130 kN3.2mm12x19W0.710 kg/m12 strands
    18207A15mm143 kN3.3mm12x19W0.770 kg/m12 strands
    18208A16mm160 kN3.5mm12x19W0.800 kg/m12 strands
    18209A18mm206 kN4.0mm12x19W1.06 kg/m12 strands
    18210A19mm236 kN4.3mm12x19W1.21 kg/m12 strands
    18211A20mm266 kN4.5mm12x1T251.31 kg/m12 strands
    18211B20mm275 kN4.5mm12x1T291.35 kg/m12 strands
    18212A22mm313 kN4.8mm12x1T251.49 kg/m12 strands
    18212B22mm325 kN4.8mm12x1T291.54 kg/m12 strands
    18213A24mm342 kN5.0mm12x1T291.65 kg/m12 strands
    18213B24mm375 kN5.2mm12x1T291.80 kg/m12 strands
    18214A26mm400 kN5.4mm12x1T291.95 kg/m12 strands
    18214B26mm405 kN4.5mm18x1T292.02 kg/m18 strands
    18215A28mm462 kN6.0mm12x1T252.24 kg/m12 strands
    18215B28mm540 kN5.2mm18x1T252.63 kg/m18 strands
    1821630mm582 kN5.4mm18x1T292.93 kg/m18 strands
    1821731mm680 kN5.8mm18x1T293.36 kg/m18 strands
    1821832mm727 kN6.0mm18x1T293.60 kg/m18 strands
    SUGGESTED WORKING LOAD: 1/3 OF BREAKING LOAD

    Shipment

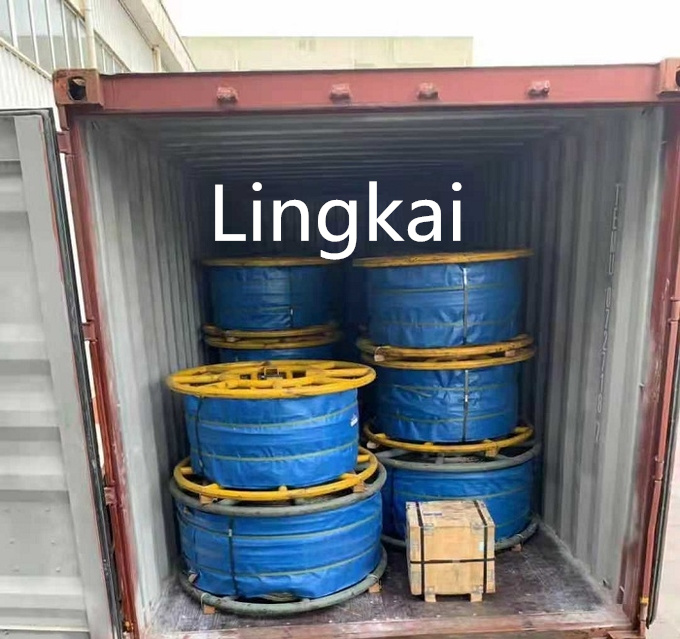

    1. The anti twisting steel wire rope will be shipped in container

    2. We will ship the products within one month normally after receiving the payment.

    3. Stock is available for standard product.
