11MM Anti Twist Steel Wire Rope is used for single conductor or
OPGW stringing on overhead power lines. It is braided from 2.5mm
galvanized strand. The braided steel strand has high flexibility,
complete stability to rotation under tension force. It can
homogeneously distribute the pressure between the elementary wires.
The special rope can increase efficiency during the overhead

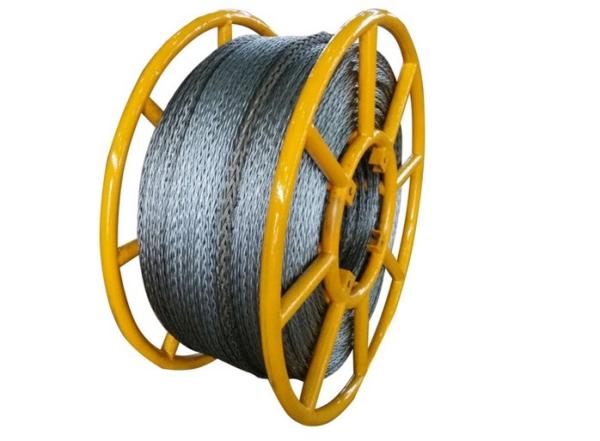

transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
11MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
Anti twisting braided steel wire rope is used as pilot wire rope
for pulling conductors or OPGW cable in overhead transmission line
stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) |
| 18203A | 11 | 82.00 | Φ2.5 | 1960 | 420 |
| | | | | | |
11mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum
Packed in 1100mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
12MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
Anti twisting braided steel wire rope is used as pilot wire rope
for pulling conductors or OPGW cable in overhead transmission line
stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) |
| 18204A | 12 | 100.00 | Φ2.7 | 1960 | 510 |
| | | | | | |
12mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum
Packed in 1100mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
It can homogeneously distribute the pressure between the elementary
wires. The special rope can increase efficiency during the overhead
transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
13MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
Anti twisting braided steel wire rope is used as pilot wire rope
for pulling conductors or OPGW cable in overhead transmission line
stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) |
| 18205A | 13 | 115.00 | Φ3.0 | 1960 | 630 |
| | | | | | |
13mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum
Packed in 1200mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
It can homogeneously distribute the pressure between the elementary
wires. The special rope can increase efficiency during the overhead
transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
14MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
Anti twisting braided steel wire rope is used as pilot wire rope
for pulling conductors or OPGW cable in overhead transmission line
stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) |
| 18206A | 14 | 130.00 | Φ3.2 | 1960 | 710 |
| | | | | | |
14mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum
Packed in 1200mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
It can homogeneously distribute the pressure between the elementary
wires. The special rope can increase efficiency during the overhead
transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
16MM Anti twisting braided steel wire rope
Anti twisting braided steel wire rope is used as pilot wire rope
for pulling conductors or OPGW cable in overhead transmission line
stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) |
| 18208A | 16 | 160 | Φ3.5 | 1960 | 800 |
| | | | | | |
16mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum
Packed in 1300mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
It can homogeneously distribute the pressure between the elementary
wires. The special rope can increase efficiency during the overhead
transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
18MM Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) |
| 18209A | 18 | 206.00 | Φ4.0 | 1960 | 1060 |
| | | | | | |
18mm rope is braided from 12 strands of 1X25Fi wire, 1000
meter/drum
Packed in 1400mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of
high strength, high flexible galvanized steel wire. The braided
steel strand has high flexibility, complete stability to rotation
under tension force.
It can homogeneously distribute the pressure between the elementary
wires. The special rope can increase efficiency during the overhead
transmission line stringing work. The rope is packed in steel drum
which can be installed directly on the reel winder of puller.
Shipment
1. The anti twisting steel wire rope will be shipped in container
2. We will ship the products within 15 days normally after
receiving the payment.
3. Stock is available for standard product.
