Three Nylon Sheaves Conductor Transmission Line Stringing Blocks

Ask Lasest Price
Brand Name :	Lingkai
Model Number :	660mm
Certification :	ISO CE
Price :	get the latest
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000sets/month
Delivery Time :	5-15 working days

Add to Cart

Product Details
Company Profile

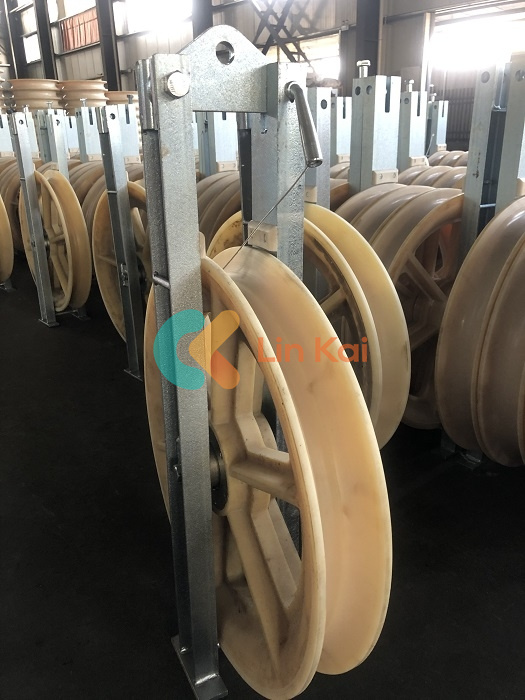

Three Nylon Sheaves Conductor Transmission Line Stringing Blocks

Three Nylon Sheaves Helicopter Conductor Stringing Blocks

Product Description

Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.

Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Three sheaves Stringing Blocks

Item No.	Model	ACSR Size Range (mm²)	Working Load (KN)	Weight (kg)	Material of Sheave
10107	SHSQN508	300-400	40	43	Nylon, optional can be lined with neoprene
10127	SHSQN660	400-500	40	76
10132	SHSQN750	500-600	60	98
10142	SHSQN822	600-700	60	110
10152	SHSQN916	700-800	75	126
10166	SHSQN1040	800-900	105	200

Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
