    Overhead Line ACSR OPGW Automatic Aluminum Alloy Clamp

    Ask Lasest Price
    Brand Name : LINGKAI
    Model Number : SKL
    Certification : ISO
    Price : get the latest
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 500 sets/month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Overhead Line ACSR OPGW Automatic Aluminum Alloy Clamp

    Herramientas para tendido de cables are used for stringing overhead conductors in transmission line construction. We produce winches, come along clamps, stringing rollers, ratchet chain hoists, conductor joint protectors etc.

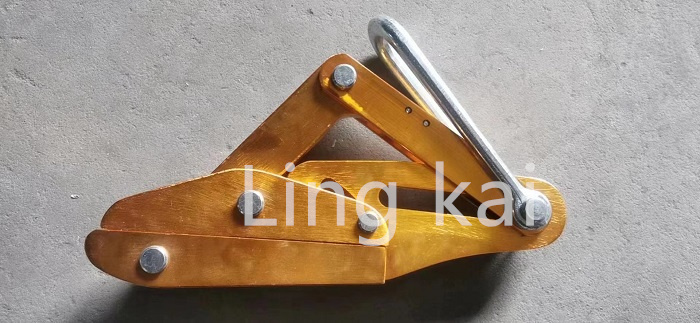

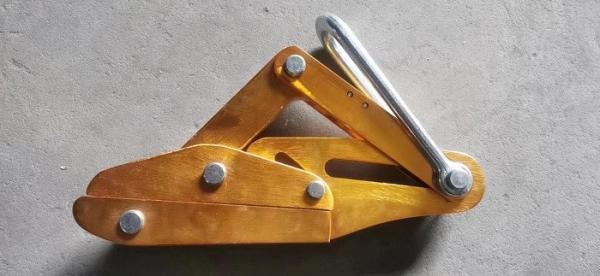

    Aluminum Alloy Conductor COME ALONG CLAMPS

    Item No.ModelRated Load (KN)Conductor Diameter (mm)Max. Opening (mm)Weight (kg)
    13221SKL-77ACSR7-12141.0
    13222SKL-1515ACSR13-16181.4
    13223SKL-2525ACSR17-23243.0
    13224SKL-4040ACSR23-29324.4
    13225SKL-5050ACSR30-35366.6
    13227SKL-6060ACSR36-38409.2
    13228SKL-7070ACSR38-404214
    13229SKL-8080ACSR40-424518
    13229ASKL-80A90ACSR42-454820

    Application: It is used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
    Feature: The come along clamp are forged from high strength aluminum alloy, light weight and high strength. All the jaws of clamps are specially designed for ACSR conductors. Special size jaws can be ordered as per the customer’s requirement.
