Product Description:
We provide Transmission Stringing Blocks with capacity of
50kN-200kN, sheave diameter 660*560*110mm and MC Nylon/Aluminum
Alloy/Cast Steel material. Our Transmission Stringing Blocks are
designed for installation in transmission and distribution lines,
which can help to reduce labor cost, improve the efficiency of
construction and ensure safety. We also provide one year warranty
for our Transmission Line Blocks.
Our Transmission Stringing Blocks are made of high quality MC
Nylon, Aluminum Alloy and Cast Steel, which are wear-resistant and
corrosion-resistant, making them durable and reliable. The sheave
diameter of our Transmission Line Blocks is 660*560*110mm, which
can be used to fit different types of lines. With capacity up to
200kN, our Transmission Stringing Blocks are suitable for all kinds
of installation in transmission and distribution lines.
Our Transmission Stringing Blocks are easy to install and operate.
They are designed to reduce labor cost, improve the efficiency of
construction and ensure safety. In addition, we also provide one
year warranty for our Transmission Line Blocks, which can give you
a worry-free purchase experience.
Features:
These top MC Nylon products are built with 8# steel, highly
galzivated frame, and imported bearings. The raw material is
sourced from the USA with 96% purity and with a UV protectant,
making it suitable for outdoor use in any kind of weather for
years.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber
coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
Technical Parameters:
| Product Name | Transmission Stringing Blocks |
|---|
| Capacity | 50kN-200kN |
| Sheave Number | 1-7 |
| Warranty | 1 Year |
| Traction Force | 20kN-75kN |
| Sheave Diameter | 660*560*110mm |
| Sheave Width | 110mm |
| Weight | 30kg-200kg |
| Material | MC Nylon/Aluminum Alloy/Cast Steel |
Applications:

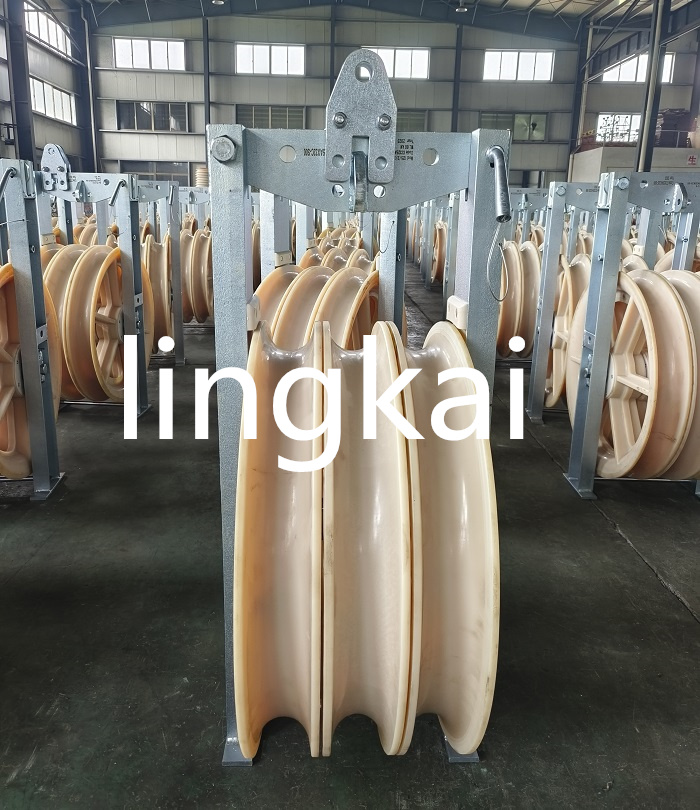

The Stringing Block composed of a 660mm MC nylon sheave. Its
maximum suitable conductor is ACSR630, and it is used for the
overhead line conductor stringing operation in electric power
engineering.
The MC nylon sheave is a key component of Stringing Block, and its
strength is extremely high. So it is beneficial for the operation
of overhead line conductor stringing for the electric power
projects.
Customization:
Transmission Stringing Blocks
- Brand Name: Lingkai
- Model Number: SHD, SHDN, SHSQN, SHWQN, SHSLN, SHWLN
- Place of Origin: NINGBO
- Certification: ISO CE
- Minimum Order Quantity: 50
- Price: Get the latest
- Packaging Details: Containers
- Delivery Time: 5-20days
- Payment Terms: T/T L/C
- Supply Ability: 1000 sets one month
- Traction Force: 20kN-75kN
- Sheave Number: 1-7
- Material: MC Nylon/Aluminum Alloy/Cast Steel
- Capacity: 50kN-200kN
- Weight: 30kg-200kg
Lingkai Transmission Stringing Blocks are designed to provide
reliable and secure stringing operations with high efficiency in
transmission line construction. Our stringing pulley blocks are
manufactured with high quality MC Nylon/Aluminum Alloy/Cast Steel
to ensure ultimate strength and durability. It can achieve traction
force up to 75kN, and is capable of lifting up to 200kN with sheave
number from 1-7.
Support and Services:
We provide technical support and service for Transmission Stringing
Blocks. Our experienced engineers are available to provide advice
on the best solution for your needs. We also provide installation
and commissioning services, and offer on-site training and after
sales service. Our team of experts are here to provide you with the
best quality service and support.
